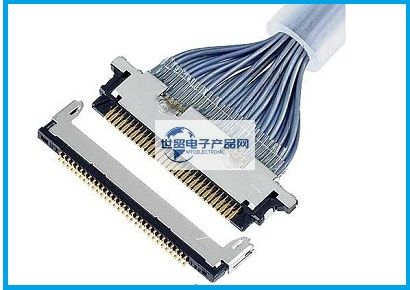

I-PEX|I-PEX连接器|日本精工|20346-010T-32R|0.4mm间距LVDS连接器产品是一款：小型化且兼备摩擦力锁扣，支持USB3.1高速数据传输(5 Gbps/lane), 触点抗异物能力强，0.4 mm间距, 水平插拔方式的细线同轴连接器；其主要特点是：自带摩擦力锁扣方式，产品小型化设计；USB® 3.1(5 Gbps/lane)高速率传输应用的理想之选；母座端子采用音叉式设计，插入时可排除异物，导通可靠性强；接点间距(mm): 0.400；Height: 1.15 Max (1.00 Nom.) ,Pin数: 10P；极细同轴线(AWG): #40 #42 #44 #46；嵌合类型: 水平。【联邦电子产品网提供兼容I-PEX|I-PEX连接器|日本精工|20346-010T-32R|0.4mm间距LVDS连接器替代品】。
------------------------------------------------------------------------------------------------

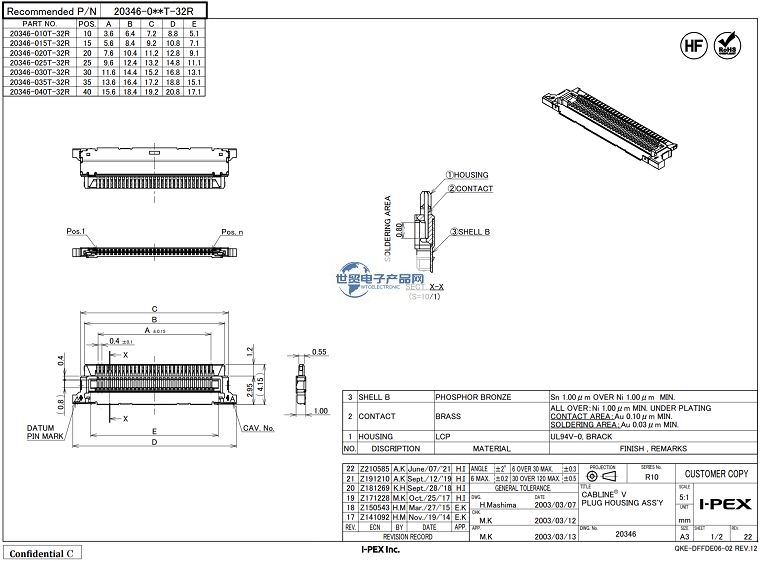

1、兼容I-PEX|I-PEX连接器|日本精工|20346-010T-32R|0.4mm间距LVDS连接器产品相关技术参数：
| 嵌合类型 | 水平 |
| Contact pitch | 0.40 mm |
| Height | 1.15 Max (1.00 Nom.) , |
| Depth | 5.65 mm |
| Width Formula | 4.80+(0.4*?p) mm |
| Pin count | 10 |
| Micro-Coaxial Cable (AWG) | #40 #42 #44 #46 |
| Discrete Cable (AWG) | #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.1A AC/DC [AWG #44] per contact/up to 40 contacts 0.24A AC/DC [AWG #42] per contact/up to 40 contacts 0.3A AC/DC [AWG #40] per contact/up to 40 contacts 0.8A AC/DC [AWG #36] per contact/up to 12 contacts |
| Applicable Standards (Reference Only) | USB 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps) MiPi standards |
| Full shielding (ZenShield®) | No |
| Mechanical lock | No |
------------------------------------------------------------------------------------------------
