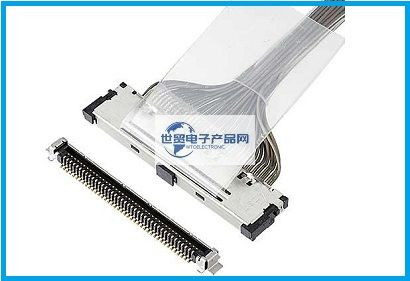

兼容/替代I-PEX|I-PEX连接器|日本精工|20438-050T-01|0.5mm间距LVDS连接器产品是一款：供电用途更大支持搭载AWG#32电子线，支持eDP HBR2 (5.4 Gbps/lane),多点接地抗噪设计，垂直插拔方式，0.5 mm 间距, 极细同轴线连接器；其主要特点是：供电用途更大支持搭载AWG#32电子线；可同时焊接不同尺寸的极细同轴线和电子线；多点接地设计，有效屏蔽电磁波干扰；接点间距(mm): 0.500；Height: 2.40 Max (2.20 Nom.) ,Pin数: 50P；极细同轴线(AWG): #36 #38 #40 #42 #44 #46；嵌合类型: 垂直。【联邦电子产品网提供兼容I-PEX|I-PEX连接器|日本精工|20438-050T-01|0.5mm间距LVDS连接器替代品】。
------------------------------------------------------------------------------------------------

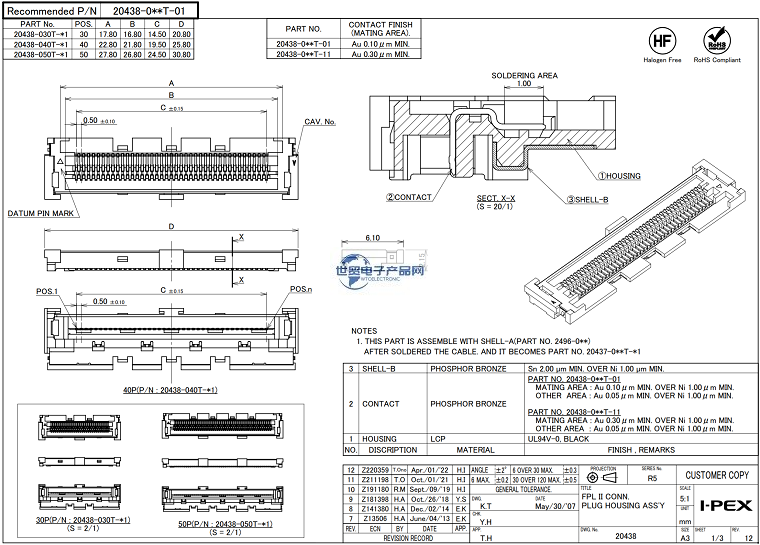

1、兼容I-PEX|I-PEX连接器|日本精工|20438-050T-01|0.5mm间距LVDS连接器产品相关技术参数：
| 嵌合类型 | 垂直 |
| Contact pitch | 0.50 mm |
| Height | 2.40 Max (2.20 Nom.) , |
| Depth | 6.10 mm |
| Width Formula | 5.8+(0.5*?) mm |
| Pin count | 50 |
| Micro-Coaxial Cable (AWG) | #36 #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) | #32 #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.6A AC/DC [AWG #38] per contact/up to 6 contacts 0.8A AC/DC [AWG #40] per contact/up to 4 contacts 1.0A AC/DC [AWG #34, 32] per contact/up to 7 contacts |
| Applicable Standards (Reference Only) | USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Full shielding (ZenShield®) | No |
| Mechanical lock | No |
------------------------------------------------------------------------------------------------
