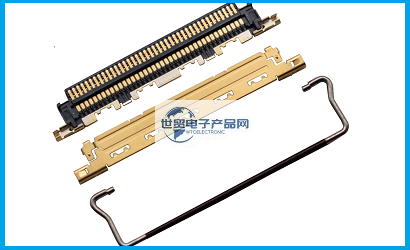

兼容/替代I-PEX|I-PEX连接器|日本精工|20634-140T-02|0.4mm间距LVDS连接器产品是一款：0.4 mm 间距,水平对插款式,带机械锁扣的极细同轴线连接器;其主要特点是：高速率传输, Thunderbolt™ 3 (20 Gbps/lane) 应用的理想之选；机械锁扣防止连接器不完全嵌合及脱落/未嵌合；CABLINE®-CA 系列多款连接器可选；接点间距(mm): 0.400；Height: 1.10 Max (1.00 Nom.) ,Pin数: 40P；极细同轴线(AWG): #38 #40 #42 #44 #46；嵌合类型: 水平。【联邦电子产品网提供兼容I-PEX|I-PEX连接器|日本精工|20634-140T-02|0.5mm间距LVDS连接器替代品】。
------------------------------------------------------------------------------------------------

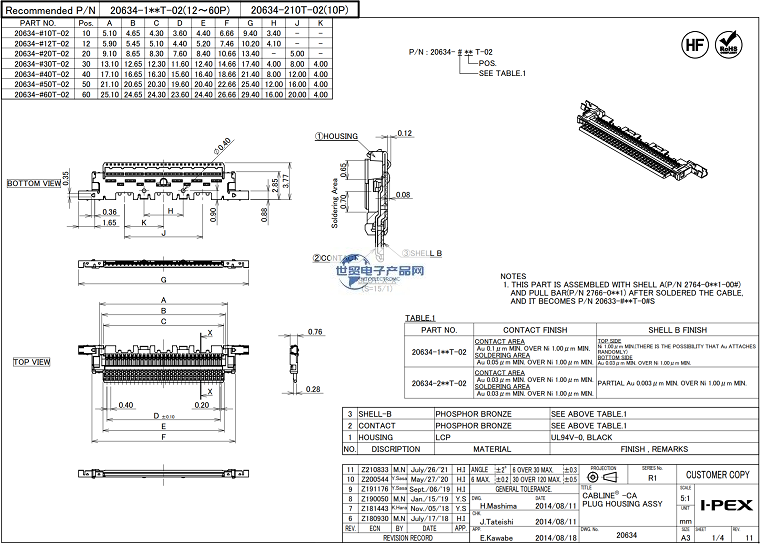

1、兼容I-PEX|I-PEX连接器|日本精工|20634-140T-02|0.4mm间距LVDS连接器产品相关技术参数：
| 嵌合类型 | 水平 |
| Contact pitch | 0.40 mm |
| Height | 1.10 Max (1.00 Nom.) , |
| Depth | 5.73 mm |
| Width Formula | 6.95+(0.4*?p) mm |
| Pin count | 40 |
| Micro-Coaxial Cable (AWG) | #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) | #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.1A AC/DC [AWG #44] per contact/up to 60 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 40 contacts 0.5A AC/DC [AWG #38] per contact/up to 14 contacts 0.8A AC/DC [AWG #36] per contact/up to 6 contacts 1.0A AC/DC [AWG #34] per contact/up to 4 contacts |
| Applicable Standards (Reference Only) | USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Full shielding (ZenShield®) | No |
| Mechanical lock | Yes |
------------------------------------------------------------------------------------------------
