分类：连接器产品

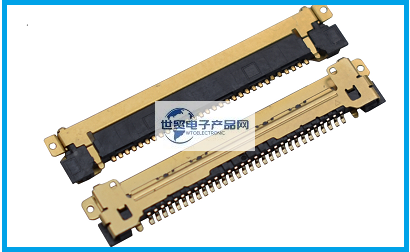

兼容/替代I-PEX|I-PEX连接器|日本精工|20455-030E-76|0.5mm间距LVDS连接器母座产品是一款：VESA标准款连接器，适用于高速数据传输(20+ Gbps/lane), 机械锁扣，0.5 mm 间距,水平对插款的极细同轴线连接器;其主要特点是：电子设备内部的高速率传输的理想之选USB4 / Thunderbolt 4 (20 Gbps/lane)；机械锁扣防止连接器不完全嵌合/未嵌合及脱落；CABLINE-VS 母座:VESA 标准连接器，Notebook PC panel 连接器占较大市场份额。Height: 1.10 Max (1.00 Nom.) ,Pin数: 30P。嵌合类型: 水平。【联邦电子产品网提供兼容I-PEX|I-PEX连接器|日本精工|20455-030E-76|0.5mm间距LVDS连接器母座替代品】。
------------------------------------------------------------------------------------------------

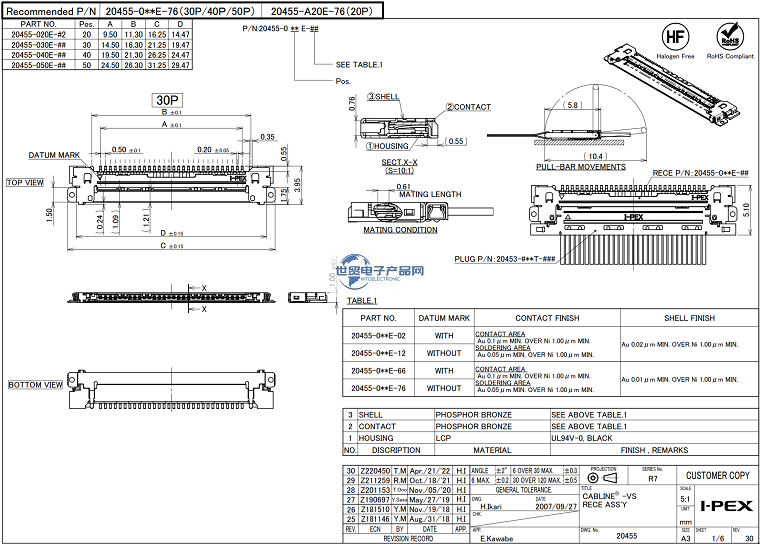

1、兼容I-PEX|I-PEX连接器|日本精工|20455-030E-76|0.5mm间距LVDS连接器母座产品相关技术参数：
| 嵌合类型 | 水平 |
| Contact pitch | 0.50 mm |
| Height | 1.10 Max (1.00 Nom.) , |
| Depth | 5.80 mm |
| Width Formula | 7.55+(0.5*?p) mm |
| Pin count | 30 |
| Micro-Coaxial Cable (AWG) | #36 #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) | #32 #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.1A AC/DC [AWG #44] per contact/up to 50 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.5A AC/DC [AWG #38] per contact/up to 14 contacts 0.8A AC/DC [AWG #36] per contact/up to 10 contacts 1.0A AC/DC [AWG #34] per contact/up to 6 contacts 1.0A AC/DC [AWG #32] per contact/up to 6 contacts |
| Applicable Standards (Reference Only) | USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Full shielding (ZenShield®) | No |
| Mechanical lock | Yes |
------------------------------------------------------------------------------------------------
