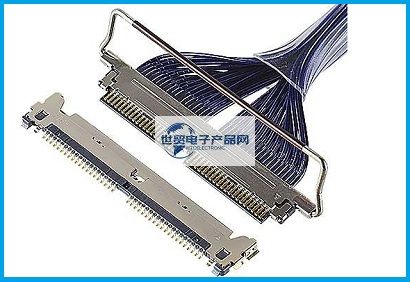

兼容/替代I-PEX|I-PEX连接器|日本精工|20777-040T-01|0.4mm间距LVDS连接器产品是一款：0.4 mm间距,水平对插款式，带机械锁扣的极细同轴线连接器(嵌合高度: 0.8 mm max);其主要特点是：适用于低空间的连接器；高速率传输,Thunderbolt™ 3 (20 Gbps/lane) 应用的理想之选；机械式锁扣防止半嵌合和连接器弹出/未嵌合；接点间距(mm): 0.400；Height: 0.80 Max (0.70 Nom.) ,Pin数:40P；极细同轴线(AWG): #38 #40 #42 #44 #46；嵌合类型: 水平。【联邦电子产品网提供兼容I-PEX|I-PEX连接器|日本精工|20777-040T-01|0.4mm间距LVDS连接器替代品】。
------------------------------------------------------------------------------------------------

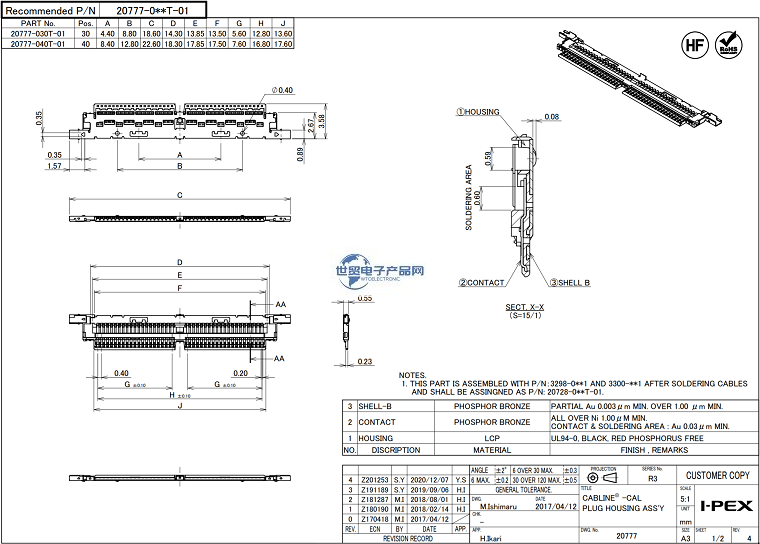

1、兼容I-PEX|I-PEX连接器|日本精工|20777-040T-01|0.4mm间距LVDS连接器产品相关技术参数：
| 嵌合类型 | 水平 |
| Contact pitch | 0.40 mm |
| Height | 0.80 Max (0.70 Nom.) , |
| Depth | 5.50 mm |
| Width Formula | 6.85+1.2+(0.4*?p) mm |
| Pin count | 30 40 |
| Micro-Coaxial Cable (AWG) | #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) | #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.10A AC/DC [AWG #44] per contact 0.24A AC/DC [AWG #42] per contact 0.30A AC/DC [AWG #40] per contact 0.80A AC/DC [AWG #36] per contact 1.00A AC/DC [AWG #34] per contact |
| Applicable Standards (Reference Only) | USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Full shielding (ZenShield®) | No |
| Mechanical lock | Yes |
------------------------------------------------------------------------------------------------
