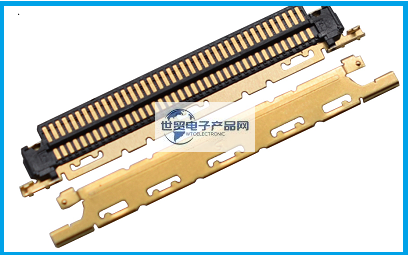

兼容/替代I-PEX|I-PEX连接器|日本精工|20473-040T-10|0.4mm间距LVDS连接器产品是一款：0.4 mm 间距, 水平插拔,带机械锁扣的极细同轴线连接器(连接器高度: 0.825 mm.);其主要特点是：低背型连接器: 嵌合高度0.975mm max. (0.825 mm nominal)；可选机械锁扣，可以防止连接器不完全插入或者连接器的脱落；多点接地设计具有良好的抗EMI 性能；接点间距(mm): 0.400；Height: 0.98 Max (0.83 Nom.) ,Pin数:40P；极细同轴线(AWG): #40 #42 #44 #46；嵌合类型: 水平。【联邦电子产品网提供兼容I-PEX|I-PEX连接器|日本精工|20473-040T-10|0.4mm间距LVDS连接器替代品】。0
------------------------------------------------------------------------------------------------

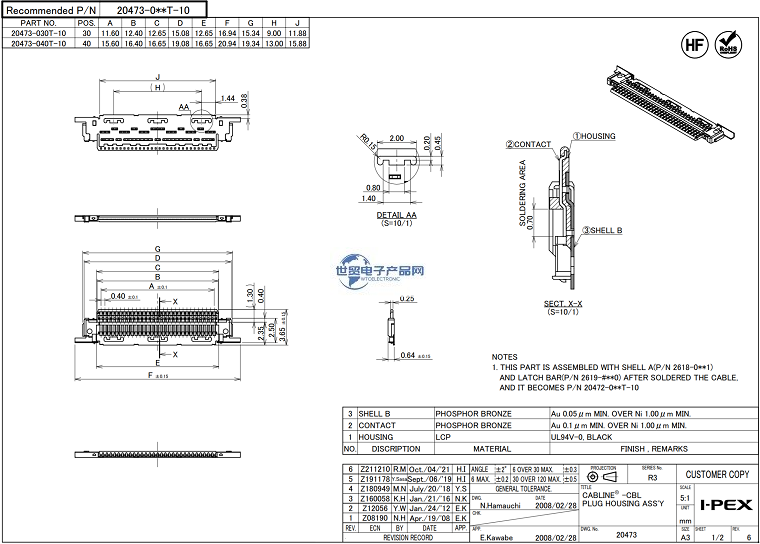

1、兼容/替代I-PEX|I-PEX连接器|日本精工|20473-040T-10|0.4mm间距LVDS连接器产品相关技术参数：
| 嵌合类型 | 水平 |
| Contact pitch | 0.40 mm |
| Height | 0.98 Max (0.83 Nom.) , |
| Depth | 5.45 mm |
| Width Formula | 6.44+(0.4*?p) mm |
| Pin count | 30 40 |
| Micro-Coaxial Cable (AWG) | #40 #42 #44 #46 |
| Discrete Cable (AWG) | #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.1A AC/DC [AWG #44] per contact 0.24A AC/DC [AWG #42] per contact 0.3A AC/DC [AWG #40] per contact 0.8A AC/DC {AWG #36] per contact |
| Applicable Standards (Reference Only) | USB 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps) MiPi standards |
| Full shielding (ZenShield®) | No |
| Mechanical lock | Yes |
------------------------------------------------------------------------------------------------
